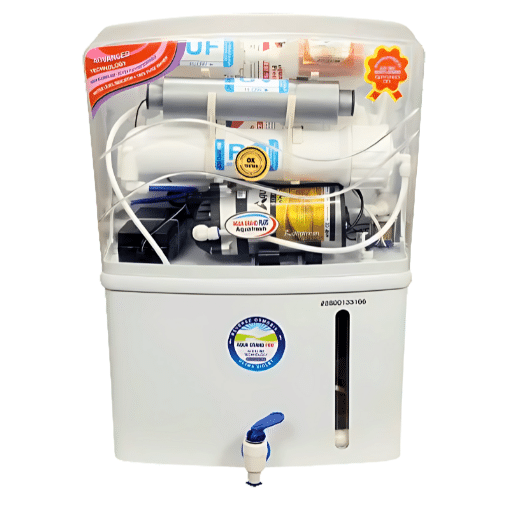

Aqua Grand Plus
- Double Purification from RO & UV with TDS Minimiser methods.
2. Give 100% Safe & Pure drinking Water for your family.
3. Great testing tea, coffee & cold drinks.
4. Sparkling crystal clear ice-cubes.
5. Cooking for delicacy.
6. Hygienic water for baby milk & food.
7. No need to purchase expensive mineral water.
8. Easy to maintain.
9. Enhances taste of drinking water.
10. Refreshing beverages, soups & sauces.
Features & Specifications :
1. Wall-mount cum Counter-top water purifier.
2. RO + UV+TDS Minimiser Technology.
3. Anti-bacteria 3-in-1 Silver Doser, Taste Conditioner
and Activated Carbon as post treatment of RO, to
enhance the shelf life & taste of water.
4. Fully Automatic Operations.
5. Push – fit Connectors for leak proof performance & longer life.
6. In-built storage tank of Volume capacity: 15 ltrs with purified water level indicator.
7. High Pressure Pump to flush out impurities & to enhance
8. Built-in SMPS to operate from 120~280 V AC for
erratic voltage supply.
9. Fully automatic water level cut-off with Auto-start /
10. Purification Capacity: Up to 15 lph†
11.Purify any source of water Like under ground water, bore-well, overhead storage tank & municipal tap water.
|1||Purification capacity||12-15* Litres per hour *|
|2||Max Duty Cycle||120 liters per Day|
|3||Storage Tank Volume||12 Litres*|
|4||7 stagesPurification .||1) Pre-Candle, 2) Sediment, 3)Activated Carbon, 4)RO 5)SV, 6) TDS Minimiser,7) UV system.|
|5||RO Membrane||100 GPD|
|6||RO Pump Power||100 GPD|
|7||Minimum Inlet Water Pressure||0.3 kg/sq cm|
|8||Maximum Inlet water Pressure||2 kg/sq cm ( if input water pressure is more than 2kg/sq cm , install PRV before the Unit)|
|9||Input Voltage||160-300V AC ( 50Hz)|
|10||Operating Voltage||24V DC|
|11||Input water Temperature||Min 5 Celsius & Max 50 Celsius|
|12||Total Dissolved Solids (TDS)||Up to 1500 ppm|
|13||Total Hardness||400 ppm (max)|
|14||Rejection of TDS||Up to 95%|
|15||Recovery||Up to 25%|
|16||Dimensions (mm)||L 415 W 265 H 524|
|17||Net Weight||9.5 kgs.|
* Purification output capacity tested on raw water with TDS level of 750 ppm at room temperature
Warranty: Six Month Warranty on Electrical Power Supply and Pump. A service visiting charge of two hundred fifty applies in the warranty period. Installation costs you rupees five hundred.
